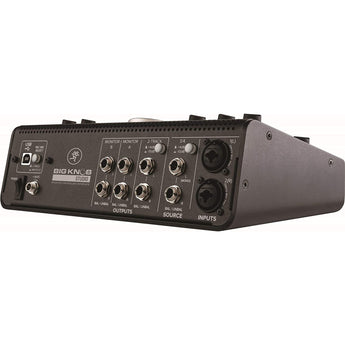

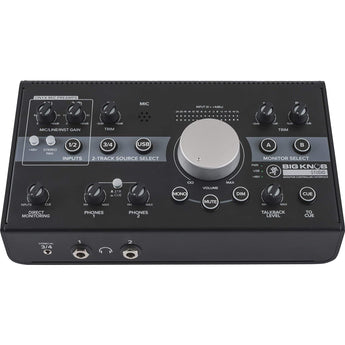

It features a built-in 2x2 USB recording interface with two Onyx mic preamps and phantom power for condenser microphones. Recording and playback is at 24-bit/192 kHz resolution and the cue mix allows for controlled blending of direct inputs with other signals for zero-latency recording. Choice of recording paths provide flexibility for applications like podcasting and more.
Additionally, other features include flexible source connections, a convenient 1/8" input for your smartphone, dual headphone outs with independent level control, a built-in talkback mic, and 16-segment high-resolution input source metering. Finally, with its sturdy and built-like-a-tank design, the interface is compatible with all major DAWs on both Mac and Windows platforms. The Big Knob Studio Monitor Controller and Interface includes Tracktion recording software.

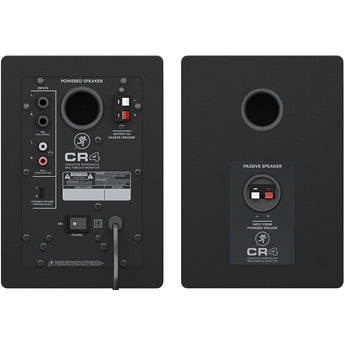

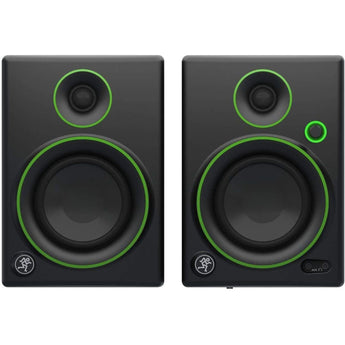

The Mackie CR4-XBT is a pair of Bluetooth-enabled Creative Reference Series 4" multimedia monitors offering a compact solution for quality audio playback in home studios and gaming setups. With 50W of amplification driving 4" woofers and 0.75" tweeters, the CR4-XBT monitors work well whether you're creating content or casually enjoying some tunes.
The pair consists of one passive speaker and one powered speaker that connects with an included speaker cable. Each monitor incorporates a custom-tuned rear port to smoothly extend the low end and a specially designed waveguide for clarity and proper dispersion of high frequencies.
With plenty of I/O provided, the CR4-XBT can accept a wired connection from your audio interface or computer soundcard, or a wireless stream via Bluetooth from your mobile device. Either way, your music can be pumped out to the drivers or your favorite headphones.
Here is what you get:
-

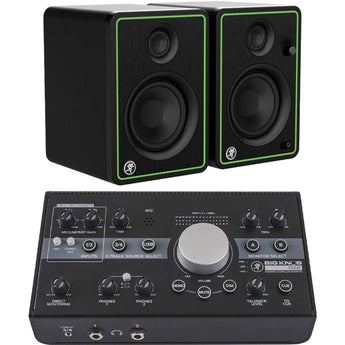

Mackie Big Knob Studio Monitor Controller and Interface
- Mackie CR4-X Creative Reference Series 4" Multimedia Monitors (Pair)
- 3.5mm to Stereo RCA Cable
- 3.5mm to 3.5mm Cable for Connecting Smartphone to Monitor
- Speaker to Speaker Cable
- Limited 1-Year Warranty
Product highlights:
- 3x Sources and 2x Monitor Pairs
- Classic Big Knob Volume Control
- Independent Trim on All Sources
- Mono, Mute, and Dim Functions
- 2x2 USB Recording Interface
- 24-Bit/192 kHz Recording and Playback
- Compatible with Windows & Mac Computers
- Sturdy Design
- Includes Tracktion Recording Software
- All-Wood Cabinet
- 50W Amplifier
- 0.75" Silk Dome Tweeter
- 4" Polypropylene-Coated Woofer
- Professional studio-quality sound
- Front-facing headphone jack auto-defeats speaker output.
Mackie BIG KNOB STUDIO Specs
Input/Output Signal Sources |
3 x 2 |
USB I/O |
2 x 2 recording interface |
Resolution |
24-bit/192 kHz |
Mono/Mute/Dim |
Yes |
Output |
Dedicated Studio Out: No |
Headphone Outputs |
2 x 1/4" (6.3 mm) outputs |
Dimensions |
Not specified by manufacturer |
Weight |
Not specified by manufacturer |
Package Weight |
5.6 lb |
Box Dimensions (LxWxH) |
13.4 x 8.7 x 5.6" |
Mackie CR4-XBT Specs
Monitor Type |
Active 2-Way |
Enclosure |
Bass-Reflex |
Power Rating |
50 W Peak |
Drivers |
LF Driver: 1 x 4" / 10.16 cm Polypropylene Cone HF Driver: 1 x 0.75" / 1.91 cm Silk Dome |
Amplification |
1 x Full-Range Amplifier: Class-D50 W Peak |
Frequency Range |
60 Hz to 20 kHz (at -10 dB) 65 Hz to 20 kHz (at -3 dB) |
Maximum-Sound Pressure Level (SPL) |
100 dB |
Phase Adjustment |
None |
EQ |
None |
Filters |
None |
Parametric EQ |
None |
Crossover Frequency |
3 kHz |
I/O |
2 x 1/4" TRS Balanced/Unbalanced Female Analog Input 1 x 2RCA Unbalanced Female Analog Input 1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Input 2 x Push Terminal Unbalanced Female Analog Output 1 x 1/8" / 3.5 mm TRS Unbalanced Female Analog Output |
AC Input Power |
100 to 240 VAC, 50/60 Hz |
Power Consumption |
60 W |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Enclosure Material |
MDF |
Mounting Points |
None |
Dimensions (W x H x D) |
6.1 x 8.9 x 8.3" / 15.5 x 22.6 x 21.1 cm (Each) |
Weight |
10.1 lb / 4.6 kg (Pair) |
Package Weight |
11.61 lb |
Box Dimensions (LxWxH) |
16.8 x 11 x 9
|
