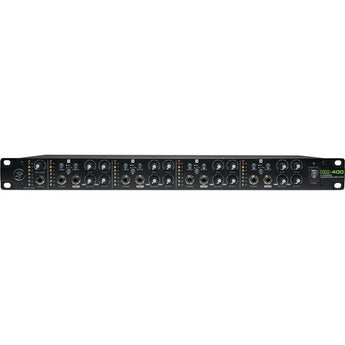

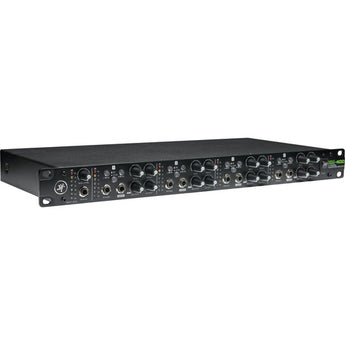

The Mackie HM-400 is a rack-mountable, 4-channel headphone amplifier designed to provide versatile headphone amplification for artists, musicians, and engineers monitoring through headphones in live stage applications and home, project, commercial, and mobile-recording studios. It features a stereo main output via XLR and 1/4" jacks and twelve 1/4" TRS stereo headphone outputs—three per channel—fed by a customizable blend of inputs.
One stereo main input via XLR and 1/4" jacks can be mixed with a per-channel 1/4" stereo aux input. Each channel offers 2-band EQ for quick tone shaping, stereo balance or main/aux input mix control, and output level adjustments. Also on each channel are switches for muting left and/or right signals and operating in stereo or mono. 7-segment LED meters display main input and per-channel output levels.
The HM-400 ships with an IEC power cable and occupies 1 RU in a standard 19" rack.
Here is what you get:
- Mackie HM-400 Rack-Mountable, 4-Channel Headphone Amplifier
- Power Cable
- Limited 1-Year Warranty
Product highlights:
- XLR & 1/4" Stereo Inputs and Outputs
- Three Headphone Outputs per Channel
- Per-Channel 1/4" Stereo Aux Input
- 2-Band EQ, Balance, and Output Controls
- L/R Mute Switches
- Stereo/Mono Mode Switches
- LED Metering
- Includes Power Cable
Mackie HM-400 Specs
|
Form Factor
|
Rackmount
|
|
Number of Headphone Channels
|
4-Channel
|
|
Headphone Output Power
|
550 mW per Side into 47 Ohms (Max)
|
|
EQ
|
2-Band EQ per Channel
|
|
Display
|
5 x Multi-Segment LED Meter
|

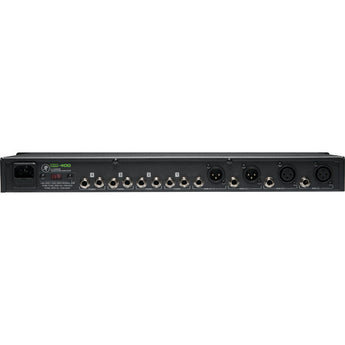

Connectivity
|
Analog Audio I/O
|
2 x XLR 3-Pin Balanced Input (1 Stereo Pair)
2 x 1/4" TRS Balanced/Unbalanced Input (1 Stereo Pair)
1 x 1/4" TRS Unbalanced Stereo Input
4 x 1/4" TRS Unbalanced Stereo Aux Input
2 x XLR 3-Pin Balanced Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Output (1 Stereo Pair)
12 x 1/4" TRS Unbalanced Headphone Output
|
Performance
|
Frequency Response
|
20 Hz to 20 kHz ±1 dB
|
|
Gain/Trim Range
|
Inputs:
-66 to +18 dBu
|
|
Max Input Level
|
Line Inputs:
+15 dBu
Aux Inputs:
+20 dBu
|
|
Max Output Level
|
Headphone Outputs:
+21 dBu
|
|
Impedance
|
Headphone Outputs:
3 Ohms (Unbalanced)
Inputs:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Aux Inputs:
10 Kilohms (Unbalanced)
|
|
THD
|
< 0.01% (at +4 dBu, 1 kHz, Unity Gain)
|
|
Noise
|
-66 dB
|
|
CMRR
|
Line Inputs:
> 42 dB (1 kHz)
|
Power
|
Power Requirements
|
AC Input
|
|
AC Input Power
|
100 to 120 VAC, 50 / 60 Hz
220 to 240 VAC, 50 / 60 Hz
|
|
Power Consumption
|
24 W
|
Physical
|
Rackmount Size
|
1 RU
|
|
Dimensions
|
19 x 8.8 x 1.8" / 483 x 224 x 46 mm
|
|
Weight
|
8.0 lb / 3.6 kg
|
Packaging Info
|
Package Weight
|
10.5 lb
|
|
Box Dimensions (LxWxH)
|
20.8 x 10.6 x 4.1"
|
